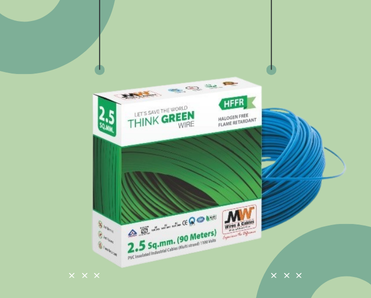

Halogen-Free, Flame-Retardant Wire
Electrical wiring forms the backbone of any structure, much like arteries in the human body, carrying the lifeblood of energy to every corner. In today’s world, the demand for wiring that ensures superior power efficiency, uncompromising safety, and eco-consciousness is greater than ever. NW Green Wire rises to this challenge, embodying MW’s unwavering commitment to innovation and protection. Designed with cutting-edge technology, NW Green Wire not only meets but exceeds rigorous European standards for sustainability and safety, making it the ideal choice for a smarter, safer, and greener future.
MW Green Wire's distinct features make it a one-of-a-kind product:
| Cond. Area (Sq.mm) | Insulation Thickness (mm) | No./ Nominal Dia of Strands | Approx. Overall Dia (mm) | DC Conductor Resistance (Ohm/Km) at 20°C Max | Current Ratings Amps. | |
|---|---|---|---|---|---|---|
| Casing | Concealed | |||||
| 0.75 | 0.60 | 24/0.200 | 2.50 | 26.00 | 11 | 10 |
| 1.00 | 0.70 | 14/0.300 | 2.65 | 18.10 | 17 | 15 |
| 1.50 | 0.80 | 22/0.300 | 3.10 | 12.10 | 20 | 18 |
| 2.50 | 0.80 | 36/0.300 | 3.70 | 7.41 | 29 | 27 |
| 4.00 | 0.90 | 56/0.300 | 4.30 | 4.95 | 38 | 36 |
| 6.00 | 0.90 | 84/0.300 | 4.60 | 3.30 | 47 | 45 |
| Properties | Test Method | Value | Grade |
|---|---|---|---|
| Limited Oxygen Index | IS 10810 P-58 | > 29% | FR |
| Limited Temp. Index | IS 10810 P-64 | >250° C | FR |
| Limited Oxygen Index | IS 1081 P-58 | > 29% | FR-LSH |
| Limited Temp. Index | IS 10810 P-64 | > 250% | FR-LSH |
| Smoke Density (Light Absorption) | ASTM-D 2843 | < 60% | FR-LSH |
| Acid Gas Generation | IS 10810 P-59 | < 20% | FR-LSH |
| Limited Oxygen Index | ASTM-D 2863 | > 32% | HFFR |
| Limited Temp. Index | ASTM-D 2863 | > 250° C | HFFR |
| Smoke Density (Light Absorption) | ASTM-D 2843 | > 10% | HFFR |
| Acid Gas Generation | IEC-60754-1 | > 2% | HFFR |
Why Choose MW Green Wire?
Little wonder that MW Green Wire has become the preferred choice of conscious consumers and industry professionals known for their uncompromising zeal.
